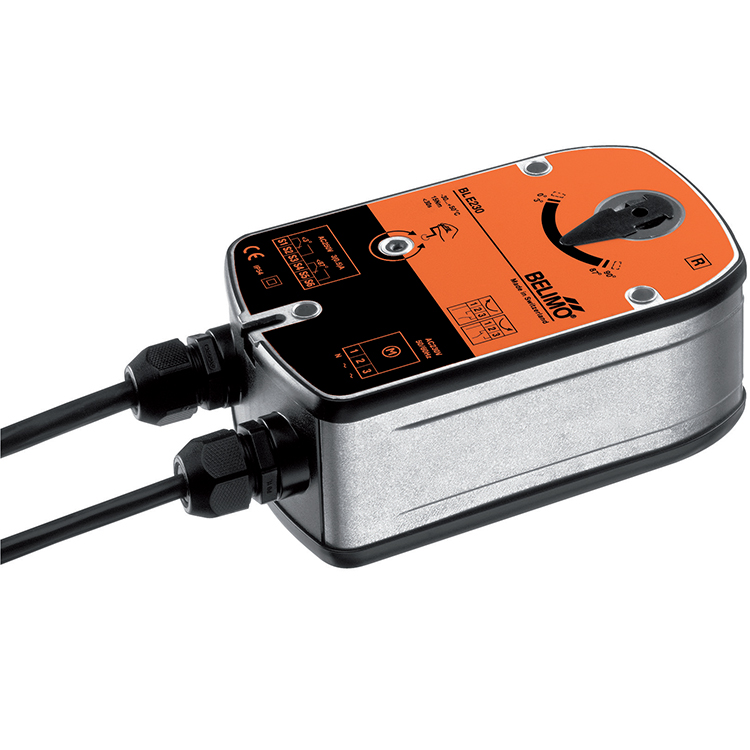

Electrical data
Nominal voltage
AC 230 V
Nominal voltage frequency
50/60 Hz
Nominal voltage range
AC 198…264 V
Switching thresholds min. ON voltage
AC 198 V
Switching thresholds max. OFF voltage
AC 100 V
Power consumption in operation
5 W
Power consumption in rest position
1 W
Power consumption for wire sizing
12 VA
Power consumption for wire sizing note
Imax 6 A @ 5 ms
Auxiliary switch
2 x SPDT
Switching capacity auxiliary switch
1 mA…3 (0.5 inductive) A, DC 5 V … AC 250 V
Switching points auxiliary switch
3° / 87°
Tolerance
±2°
Connection supply / control
Cable 1 m, 3 x 0.75 mm², halogen-free
Connection auxiliary switch
Cable 1 m, 6 x 0.75 mm², halogen-free
Functional data
Nominal torque
15 Nm
Inhibiting torque dynamic
15 Nm
Inhibiting torque static (voltage-free)
20 Nm
Direction of rotation motor
Can be selected by mounting L/R
Manual override
with hand crank
Angle of rotation
Max. 105°
Angle of rotation note
including mechanical overrun at both sides
Running time motor
<30 s / 90°
Sound power level, motor
62 dB(A)
Spindle driver
Form fit 12×12 mm, Continuous hollow shaft
Position indication
Mechanically, with pointer
Service life
Min. 10,000 cycles
Safety
Protection class IEC/EN
II reinforced insulation
Protection class auxiliary switch IEC/EN
II reinforced insulation
Degree of protection IEC/EN
IP54
EMC
CE according to 2014/30/EU
Low voltage directive
CE according to 2014/35/EU
Certification IEC/EN
IEC/EN 60730-1 and IEC/EN 60730-2-14
Mode of operation
Type 1.B
Rated impulse voltage supply / control
4 kV
Rated impulse voltage auxiliary switch
4 kV
Control pollution degree
3
Ambient temperature
-30…50 °C
Non-operating temperature
-40…80 °C
Ambient humidity
Max. 95% r.h., non-condensing
Maintenance
Maintenance-free
Weight
Weight
1.6 kg
