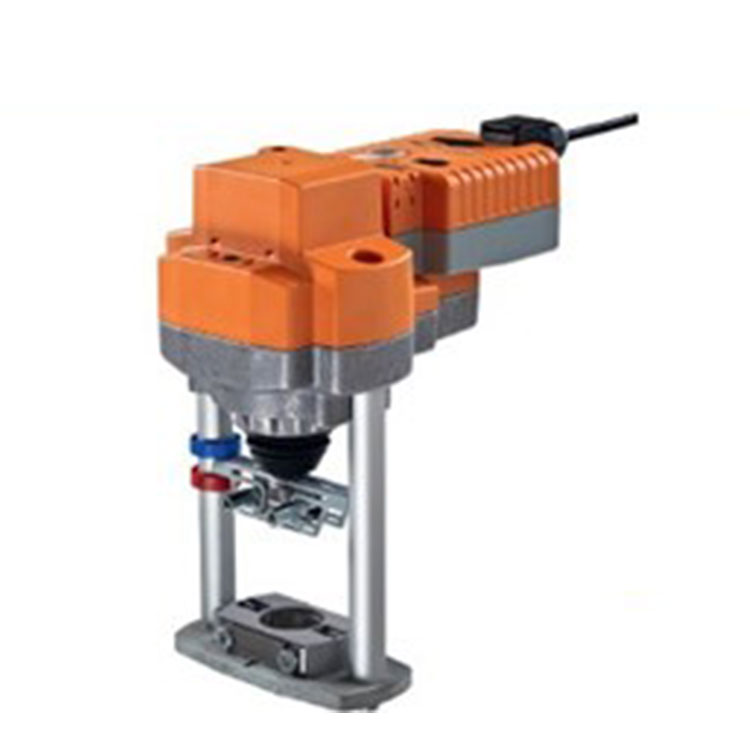

Electrical data Nominal voltage AC/DC 24 V
Nominal voltage frequency 50/60 Hz
Nominal voltage range AC 19.2…28.8 V / DC 21.6…28.8 V
Power consumption in operation 5 W
Power consumption in rest position 2 W
Power consumption for wire sizing 9.5 VA
Connection supply / control Terminals with cable 1 m, 4 x 0.75 mm²
(Terminal 4 mm²)
Parallel operation Yes (note the performance data)
Functional data Actuating force motor 2000 N
Communicative control MP-Bus
Operating range Y 2…10 V
Input Impedance 100 kΩ
Options positioning signal Open/close
3-point (AC only)
Modulating (DC 0…32 V)
Operating range Y variable Start point 0.5…30 V
End point 2.5…32 V
Position feedback U 2…10 V
Position feedback U note Max. 0.5 mA
Position feedback U variable Start point 0.5…8 V
End point 2.5…10 V
Setting fail-safe position Spindle 0…100%, adjustable (POP rotary knob)
Bridging time (PF) variable 1…10 s
Position accuracy ±5%
Manual override with push-button
Stroke 32 mm
Running time motor 150 s / 32 mm
Running time motor variable 90…150 s
Running time fail-safe 35 s / 32 mm
Adaptation setting range manual (automatic on first power-up)
Adaptation setting range variable No action
Adaptation when switched on
Adaptation after pushing the gear
disengagement button
Override control MAX (maximum position) = 100%
MIN (minimum position) = 0%
ZS (intermediate position, AC only) = 50%
Override control variable MAX = (MIN + 33%)…100%
MIN = 0%…(MAX – 33%)
ZS = MIN…MAX
Sound power level, motor 60 dB(A)
Sound power level, fail-safe 60 dB(A)
Position indication Mechanically, 5…32 mm stroke
Safety Protection class IEC/EN III Safety Extra-Low Voltage (SELV)
Protection class UL UL Class 2 Supply
Degree of protection IEC/EN IP54
Degree of protection NEMA/UL NEMA 2
Enclosure UL Enclosure Type 2
