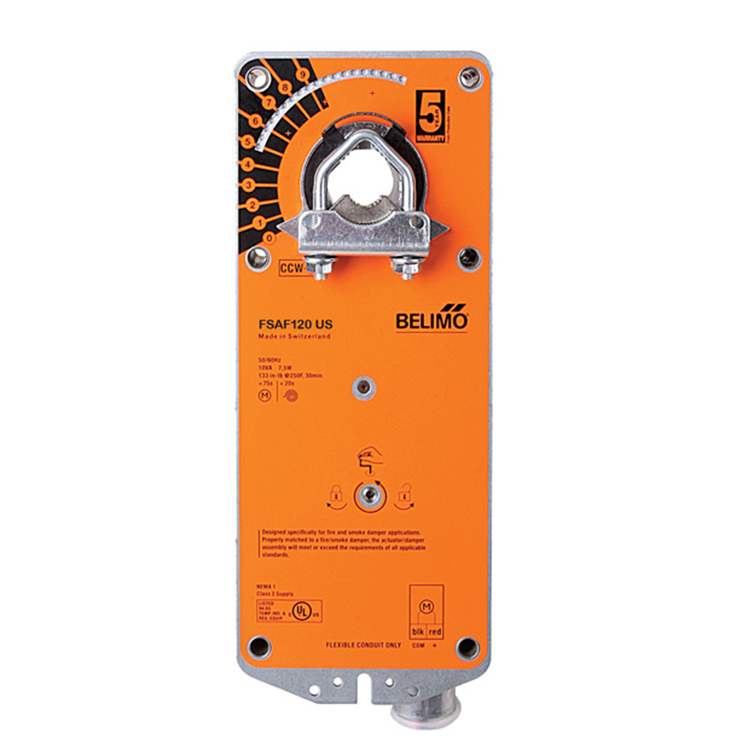

Technical Data
285374
Power Supply
230 VAC, ±10%, 50/60 Hz
Power consumption in operation
37 VA
Power consumption in rest position
10 W, 19 VA (60 Hz 12 VA), End stop 54 VA, 0.25 A slow blow fuse *
Shaft Diameter
1/2…1.05” round, centers on 3/4” with insert, 1.05” without insert
Electrical Connection
18 GA appliance cable, 3 ft [1 m], with 1/2” conduit connector
Overload Protection
electronic throughout 0…95° rotation
Electrical Protection
grounded enclosure, 230 V
Angle of rotation
95°
Direction of motion motor
selectable by ccw/cw mounting
Torque motor
180 in-lb [20 Nm]
Direction of motion fail-safe
reversible with cw/ccw mounting
Position indication
Mechanical
Running Time (Motor)
<25 s
Running time fail-safe
<15 s
Ambient humidity
max. 95% r.H., non-condensing
Ambient temperature
32…122°F [0…50°C]
Storage temperature
-40…176°F [-40…80°C]
Degree of Protection
IP40, NEMA 1
Housing material
galvanized steel
Gears
steel, permanently lubricated
Agency Listing
cULus listed to UL60730-1A:02; UL 60730-2-14:02 and CAN/CSA-E60730-1:02; Listed to UL 2043 – suitable for use in air plenums per Section 300.22(c) of the NEC and Section 602.2 of the IMC
Noise level, motor
70 dB(A)
Noise level, fail-safe
73 dB(A)
Servicing
maintenance-free
Quality Standard
ISO 9001, RoHS (EU-Directive 2011/65/EU)
Weight
6.8 lb [3.0 kg]
