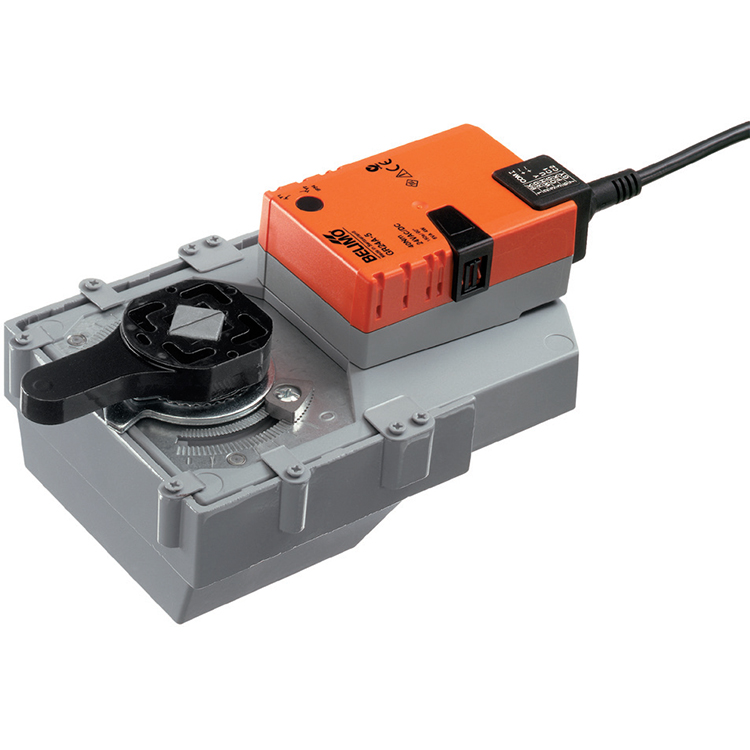

Electrical data
Nominal voltage
AC/DC 24 V
Nominal voltage frequency
50/60 Hz
Nominal voltage range
AC 19.2…28.8 V / DC 19.2…28.8 V
Power consumption in operation
4 W
Power consumption in rest position
2 W
Power consumption for wire sizing
6 VA
Connection supply / control
Cable 1 m, 3 x 0.75 mm²
Parallel operation
Yes (note the performance data)
Functional data
Torque motor
Min. 40 Nm
Manual override
Gear disengagement with push-button, can be locked
Running time motor
150 s / 90°
Sound power level motor max.
45 dB(A)
Position indication
Mechanically (integrated)
Safety
Protection class IEC/EN
III Safety extra-low voltage
Protection class UL
UL Class 2 Supply
Degree of protection IEC/EN
IP54
Degree of protection NEMA/UL
NEMA 2, UL Enclosure Type 2
EMC
CE according to 2014/30/EU
Certification IEC/EN
IEC/EN 60730-1 and IEC/EN 60730-2-14
Mode of operation
Type 1
Rated impulse voltage supply / control
0.8 kV
Control pollution degree
3
Ambient temperature
-30…50°C
Non-operating temperature
-40…80°C
Ambient humidity
95% r.h., non-condensing
Maintenance
Maintenance-free
Mechanical data
Connection flange
F05
Weight
Weight approx.
1.85 kg
