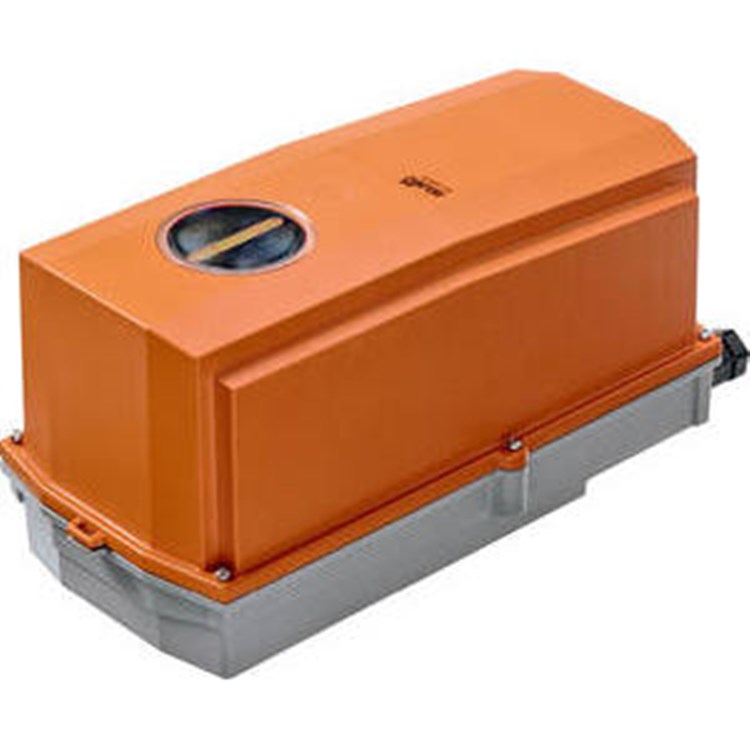

Electrical data Nominal voltage AC/DC 24 V
Nominal voltage frequency 50/60 Hz
Nominal voltage range AC 19.2…28.8 V / DC 21.6…28.8 V
Power consumption in operation 8 W
Power consumption in rest position 2.5 W
Power consumption for wire sizing 11 VA
Connection supply / control Terminals 4 mm² (cable Ø 4…10 mm, 4-wire)
Parallel operation Yes (note the performance data)
Functional data Torque motor Min. 40 Nm
Positioning signal Y DC 0…10 V
Positioning signal Y note Input impedance 100 kΩ
Control signal Y variable Open-close
3-point (AC only)
Modulating (DC 0…32 V)
Operating range Y DC 2…10 V
Operating range Y variable Start point DC 0.5…30 V
End point DC 2.5…32 V
Position feedback U DC 2…10 V
Position feedback U note Max. 0.5 mA
Position feedback U variable Start point DC 0.5…8 V
End point DC 2.5…10 V
Position accuracy ±5%
Manual override Gear disengagement with push-button, can be
locked
Running time motor 35 s / 90°
Motor running time variable 35…150 s
Adaption setting range manual (automatic on first power-up)
Adaption setting range variable No action
Adaption when switched on
Adaption after pushing the gear disengagement
button
Override control MAX (maximum position) = 100%
MIN (minimum position) = 0%
ZS (intermediate position, AC only) = 50%
Override control variable MAX = (MIN + 33%)…100%
MIN = 0%…(MAX – 33%)
ZS = MIN…MAX
Sound power level motor 35 dB(A)
Position indication Yes
Safety Protection class IEC/EN III Safety extra-low voltage
Protection class UL UL Class 2 Supply
Degree of protection IEC/EN IP66
Degree of protection NEMA/UL NEMA 4, UL Enclosure Type 4
EMC CE according to 2014/30/EU
Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
Mode of operation Type 1
Rated impulse voltage supply / control 0.8 kV
