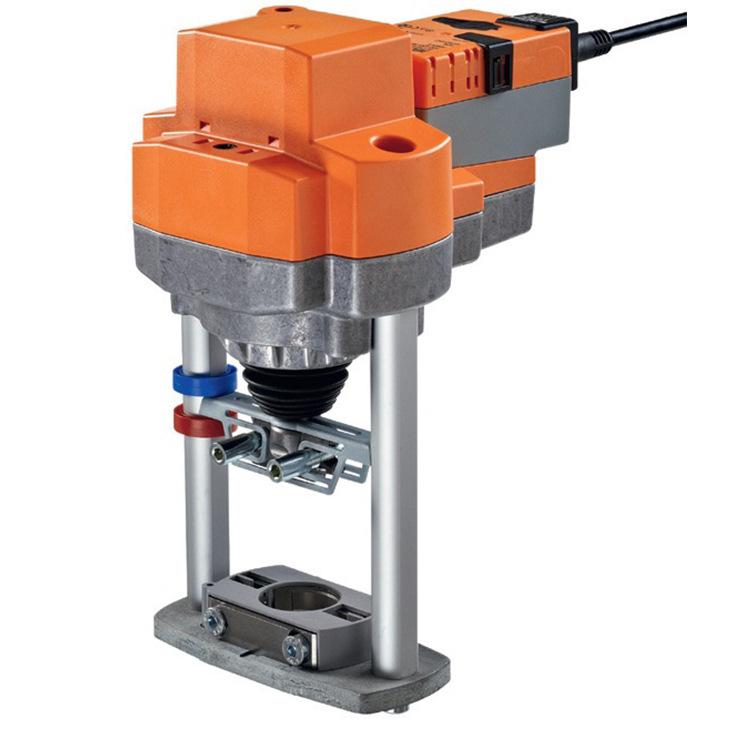

Electrical data Nominal voltage AC/DC 24 V
Nominal voltage frequency 50/60 Hz
Nominal voltage range AC 19.2…28.8 V / DC 21.6…28.8 V
Power consumption in operation 6 W
Power consumption in rest position 1.5 W
Power consumption for wire sizing 11 VA
Connection supply / control Cable 1 m, 4 x 0.75 mm²
Parallel operation Yes (note the performance data)
Functional data Actuating force motor 4500 N
Operating range Y 2…10 V
Input Impedance 100 kΩ
Options positioning signal Open/close
3-point (AC only)
Modulating (DC 0…32 V)
Operating range Y variable Start point 0.5…30 V
End point 2.5…32 V
Position feedback U 2…10 V
Position feedback U note Max. 0.5 mA
Position feedback U variable Start point 0.5…8 V
End point 2.5…10 V
Position accuracy ±5%
Manual override with push-button, can be locked
Stroke 40 mm
Running time motor 120 s / 40 mm
Running time motor variable 72…120 s
Adaptation setting range manual (automatic on first power-up)
Adaptation setting range variable No action
Adaptation when switched on
Adaptation after pushing the gear
disengagement button
Override control MAX (maximum position) = 100%
MIN (minimum position) = 0%
ZS (intermediate position, AC only) = 50%
Override control variable MAX = (MIN + 33%)…100%
MIN = 0%…(MAX – 33%)
ZS = MIN…MAX
Sound power level, motor 56 dB(A)
Position indication Mechanically, 5…40 mm stroke
Safety Protection class IEC/EN III Safety Extra-Low Voltage (SELV)
Protection class UL UL Class 2 Supply
Degree of protection IEC/EN IP54
Degree of protection NEMA/UL NEMA 2
Enclosure UL Enclosure Type 2
EMC CE according to 2014/30/EU
Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
Certification UL cULus according to UL60730-1A, UL60730-2-
14 and CAN/CSA E60730-1:02
