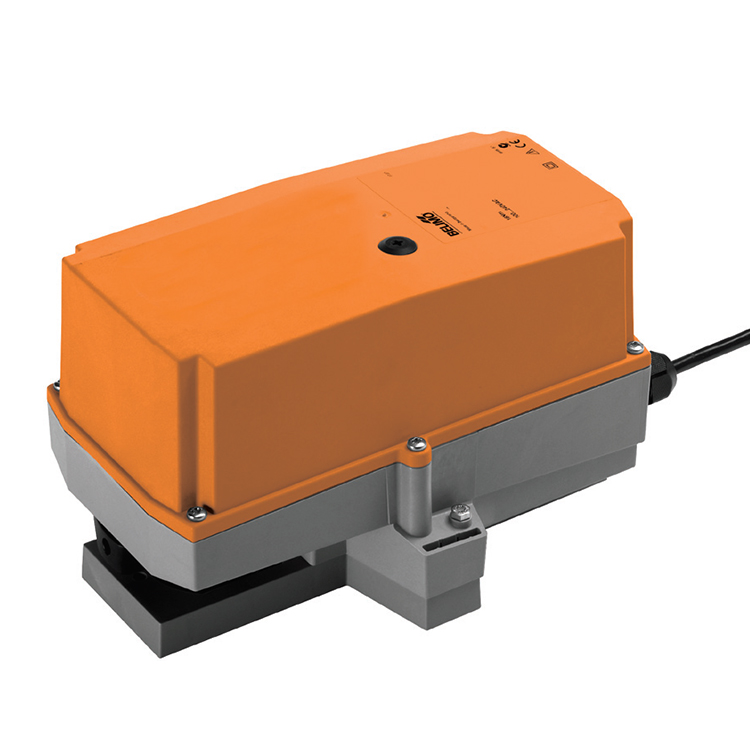

Electrical data
Nominal voltage
AC 230 V
Nominal voltage frequency
50/60 Hz
Nominal voltage range
AC 85…265 V
Power consumption in operation
3 W
Power consumption in rest position
0.6 W
Power consumption for wire sizing
7 VA
Connection supply / control
Cable 1 m, 3 x 0.75 mm² (halogen-free)
Parallel operation
Yes (note the performance data)
Functional data
Torque motor
Min. 20 Nm
Manual override
Gear disengagement with push-button, can be locked
Running time motor
90 s / 90°
Sound power level motor max.
45 dB(A)
Position indication
Mechanically, pluggable
Safety
Protection class IEC/EN
II Protective insulated
Protection class UL
II Protective insulated
Degree of protection IEC/EN
IP66 + IP67
Degree of protection NEMA/UL
NEMA 4, UL Enclosure Type 4
EMC
CE according to 2014/30/EU
Low voltage directive
CE according to 2014/35/EU
Certification IEC/EN
IEC/EN 60730-1 and IEC/EN 60730-2-14
Mode of operation
Type 1
Rated impulse voltage supply / control
2.5 kV
Control pollution degree
4
Ambient temperature
-30…50°C
Ambient temperature note
-40…50°C for actuator with integrated heating
Non-operating temperature
-40…80°C
Ambient humidity
100% r.h.
Maintenance
Maintenance-free
Mechanical data
Connection flange
F05
Weight
Weight approx.
2.0 kg
