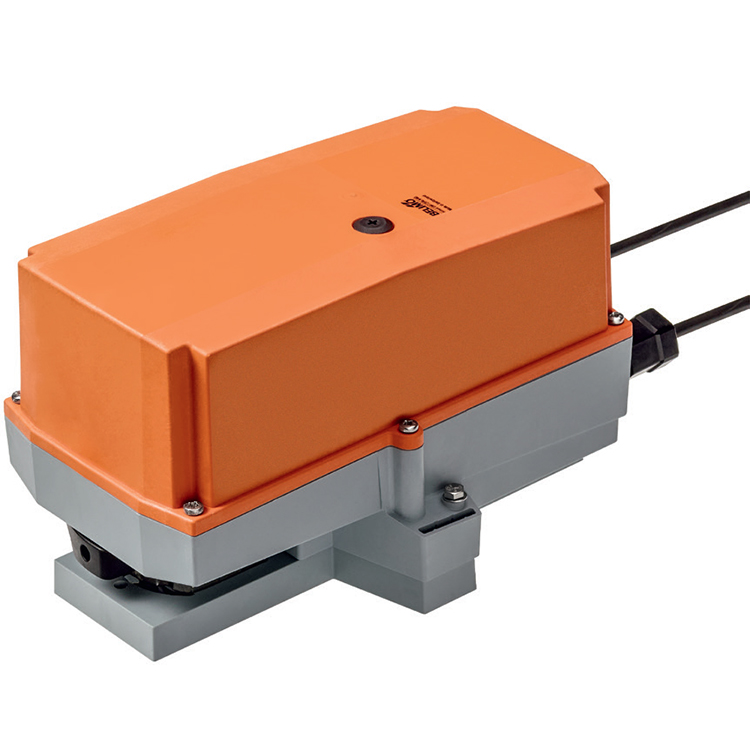

Electrical data
Nominal voltage
AC 230 V
Nominal voltage frequency
50/60 Hz
Nominal voltage range
AC 85…265 V
Power consumption in operation
4 W
Power consumption in rest position
1 W
Power consumption for wire sizing
7.5 VA
Connection supply
Cable 1 m, 2 x 0.75 mm² (halogen-free)
Connection control
Cable 1 m, 4 x 0.75 mm² (halogen-free)
Parallel operation
Yes (note the performance data)
Functional data
Torque motor
20 Nm
Operating range Y
DC 2…10 V
Input Impedance
100 kΩ
Position feedback U
DC 2…10 V
Position feedback U note
Max. 1 mA
Auxiliary supply
DC 24 V ±30%, max. 10 mA
Position accuracy
±5%
Manual override
with push-button, can be locked
Running time motor
90 s / 90°
Sound power level, motor
45 dB(A)
Position indication
Mechanically, pluggable
Safety
Protection class IEC/EN
II reinforced insulation
Protection class UL
II reinforced insulation
Degree of protection IEC/EN
IP66/67
Degree of protection NEMA/UL
NEMA 4, UL Enclosure Type 4
EMC
CE according to 2014/30/EU
Low voltage directive
CE according to 2014/35/EU
Certification IEC/EN
IEC/EN 60730-1 and IEC/EN 60730-2-14
Certification UL
cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1:02
Mode of operation
Type 1
Rated impulse voltage supply
2.5 kV
Rated impulse voltage control
0.8 kV
Control pollution degree
4
Ambient temperature
-30…50 °C
Ambient temperature note
-40…50°C for actuator with integrated heating
Non-operating temperature
-40…80 °C
Ambient humidity
100% r.H.
Maintenance
Maintenance-free
Mechanical data
Connection flange
F05
Weight
Weight
2.0 kg
