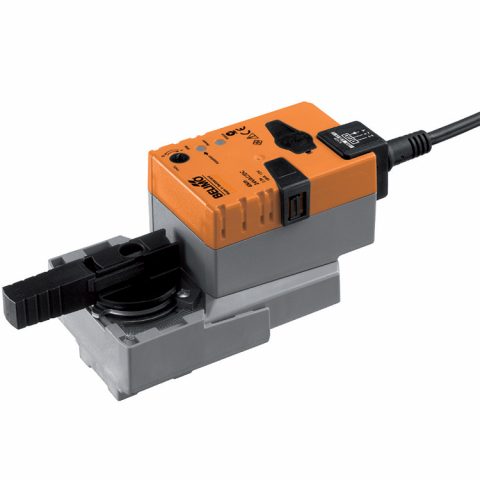

Electrical data Nominal voltage AC/DC 24 V
Nominal voltage frequency 50/60 Hz
Nominal voltage range AC 19.2…28.8 V / DC 19.2…28.8 V
Power consumption in operation 13 W
Power consumption in rest position 2 W
Power consumption for wire sizing 23 VA
Power consumption for wire sizing note Imax 20 A @ 5 ms
Connection supply / control Cable 1 m, 4 x 0.75 mm²
Parallel operation Yes (note the performance data)
Functional data Torque motor Min. 4 Nm
Positioning signal Y DC 0…10 V
Positioning signal Y note Input impedance 100 kΩ
Operating range Y DC 2…10 V
Position feedback U DC 2…10 V
Position feedback U note Max. 0.5 mA
Position accuracy ±5%
Manual override Gear disengagement with push-button, can be
locked
Running time motor 9 s / 90°
Adaption setting range manual (automatic on first power-up)
Sound power level motor 45 dB(A)
Position indication Mechanically, pluggable
Safety Protection class IEC/EN III Safety extra-low voltage
Protection class UL UL Class 2 Supply
Degree of protection IEC/EN IP54
Degree of protection NEMA/UL NEMA 2, UL Enclosure Type 2
EMC CE according to 2014/30/EU
Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
Mode of operation Type 1
Rated impulse voltage supply / control 0.8 kV
Control pollution degree 3
Ambient temperature -30…40°C
Ambient temperature note Caution: +40…+50°C utilisation possible only
under certain restrictions. Please contact your
supplier.
Non-operating temperature -40…80°C
Ambient humidity 95% r.h., non-condensing
Maintenance Maintenance-free
Weight Weight approx. 0.92 kg
