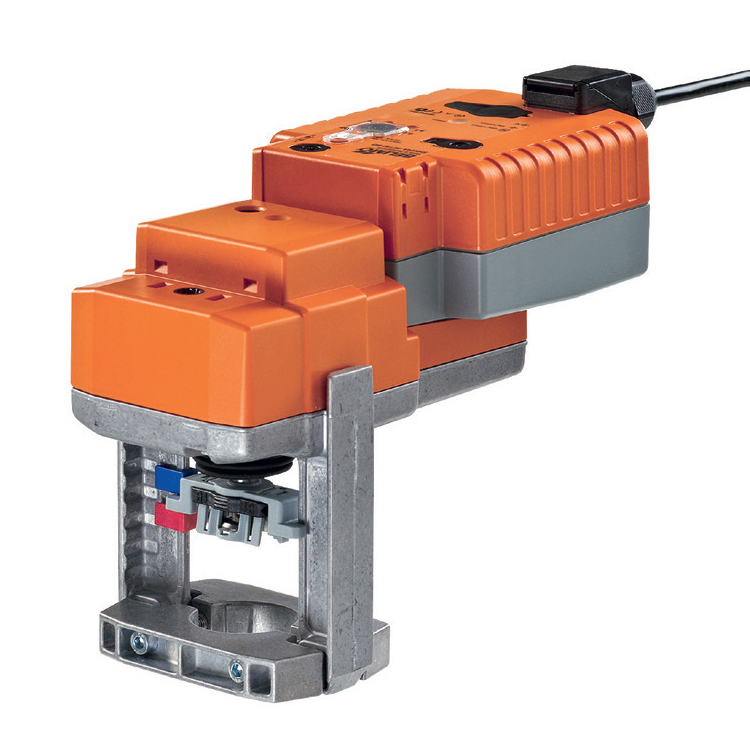

Electrical data
Nominal voltage
AC/DC 24 V
Nominal voltage frequency
50/60 Hz
Nominal voltage range
AC 19.2…28.8 V / DC 21.6…28.8 V
Power consumption in operation
2.5 W
Power consumption in rest position
1.5 W
Power consumption for wire sizing
6 VA
Connection supply / control
Terminals with cable 1 m, 4 x 0.75 mm² (Terminal 4 mm²)
Parallel operation
Yes (note the performance data)
Functional data
Actuating force motor
1
500 N
Positioning signal Y
DC 0…10 V
Positioning signal Y note
Input impedance 100 kΩ
Control signal Y variable
Open/Close3-point (AC only) Modulating (DC 0…32 V)
Operating range Y
DC 2…10 V
Operating range Y variable
Start point DC 0.5…30 V
End point DC 2.5…32 V
Position feedback U
DC 2…10 V
Position feedback U note
Max. 0.5 mA
Position feedback U variable
Start point DC 0.5…8 V
End point DC 2.5…10 V
Setting emergency setting position (POP)
Actuator spindle 0…100%, adjustable (POP rotary button)
Bridging time (PF) variable
1…10 s
Position accuracy
5% absolute
Manual override
Gear disengagement with push-button
Nominal stroke
20 mm
Actuating time motor
150 s / 20 mm
Actuating time variable
90…150 s / 20 mm
Actuating time emergency control function
35 s / 20 mm
Adaption setting range
manual (automatic on first power-up)
Adaption setting range variable
No action
Adaption when switched on
Adaption after pushing the gear disengagement button
Override control
MAX (maximum position) = 100%
MIN (minimum position) = 0%
ZS (intermediate position, AC only) = 50%
Override control variable
MAX = (MIN + 33%)…100%
MIN = 0%…(MAX – 33%)
ZS = MIN…MAX
Sound power level motor45 dB(A)
Sound power level emergency control position60 dB(A)
Position indication
Mechanically, 5…20 mm stroke
Safety
Protection class IEC/EN
III Safety extra-low voltage
Protection class UL
UL Class 2 Supply
