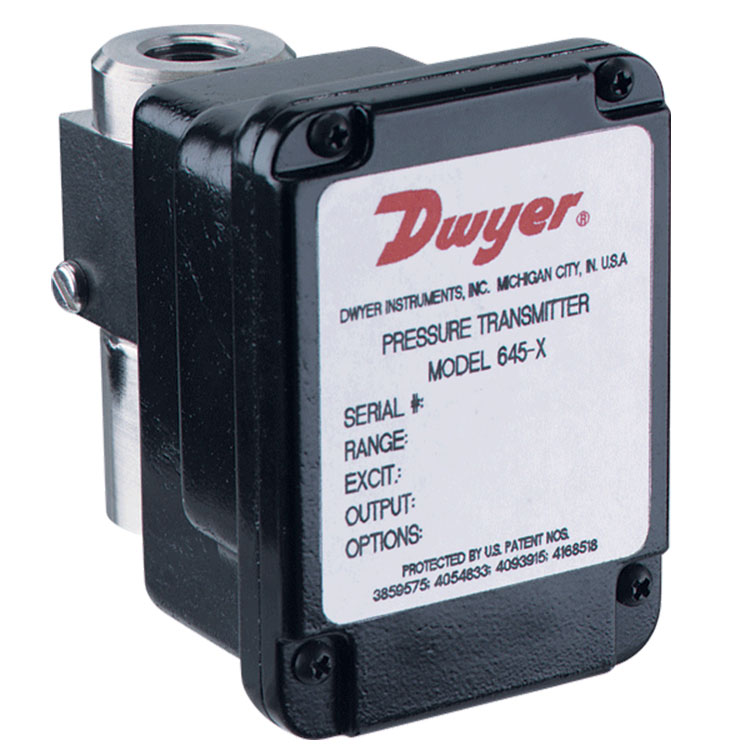

Service:Compatible gases or liquids on both pressure and reference sides.Wetted Materials:17-4 PH stainless steel, 300 Series stainless steel, fluoroelastomer and silicone O-rings and bleed screw seals.Accuracy:±0.25% FS (RSS).Temperature Limits:Operating: 0 to 175°F (-22 to 80°C); Storage: -65 to 260°F (-54 to 126°C).Pressure Limits:(High side) 1 to 5 psi: 20 x FS, 10 to 25 psi: 10 x FS, 50 psi: 5 x FS, 100 psi: 2.5 x FS; (low side) 2.5 x FS.Thermal Effects:(includes zero and span) ±0.02% FS/°F, 30 to 150°F (-1 to 65°C).Power Requirements:11 to 30 VDC.Output Signal:4 to 20 mA, 2-wire.Zero and Span Adjustments:Adjustable, ±1 mA, non-interactive.Response Time:30 to 50 ms.Loop Resistance:0 to 1000Ω.Electrical Connection:Barrier strip terminal block with conduit enclosure and .875″ (22 mm) diameter conduit opening.Process Connection:1/4″-18 female NPT.Housing:Stainless steel/aluminum, NEMA 4X (IP56).Weight:14.4 oz (0.4 kg).Agency Approvals:CE.
3-Valve Manifold AssemblyManifold:Brass.Valve Type:90° on/off.Process Connection:1/4″-18 female NPT.
