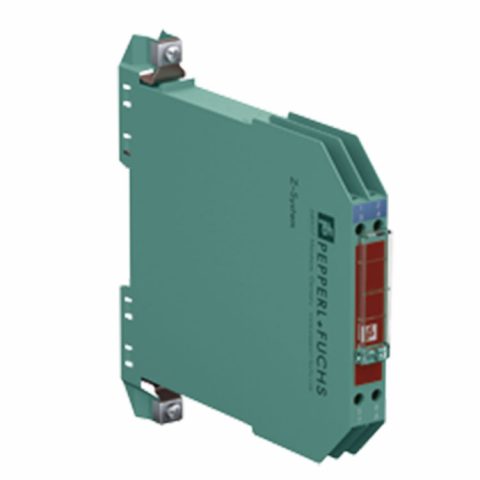

General specifications
Type AC version
Electrical specifications
Nominal resistance 1000 Ω
Series resistance max. 1033 Ω
Fuse rating 50 mA
Hazardous area connection
Connection terminals 1, 2; 3, 4
Safe area connection
Connection terminals 5, 6; 7, 8
Working voltage
Supply loop max. 11.1 V
Measurement loop max. 10 V at 10 µA
Conformity
Degree of protection IEC 60529
Ambient conditions
Ambient temperature -20 … 60 °C (-4 … 140 °F)
Storage temperature -25 … 70 °C (-13 … 158 °F)
Relative humidity max. 75 % , without condensation
Mechanical specifications
Degree of protection IP20
Connection screw terminals
Core cross-section max. 2 x 2.5 … mm2
Mass approx. 150 g
Dimensions 12.5 x 115 x 110 mm (0.5 x 4.5 x 4.3 inch)
Construction type modular terminal housing , see system description
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-type examination certificate BAS 01 ATEX 7005
Marking Ex-Hexagon II (1)GD, I (M1) [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I (-20 °C ≤ Tamb ≤ 60 °C) [circuit(s) in zone 0/1/2]
Voltage 12 V
Current 12 mA
Power 40 mW
Supply
Maximum safe voltage 250 V
Series resistance min. 980 Ω
Certificate TÜV 99 ATEX 1484 X
Marking Ex-Hexagon II 3G Ex nA IIC T4 Gc [device in zone 2]
Directive conformity
Directive 2014/34/EU EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
International approvals
FM approval
Control drawing 116-0118
UL approval
Control drawing 116-0139 (cULus)
IECEx approval IECEx BAS 09.0142
IECEx BAS 17.0091X
Approved for [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I
Ex ec IIC T4 Gc
General information
Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
