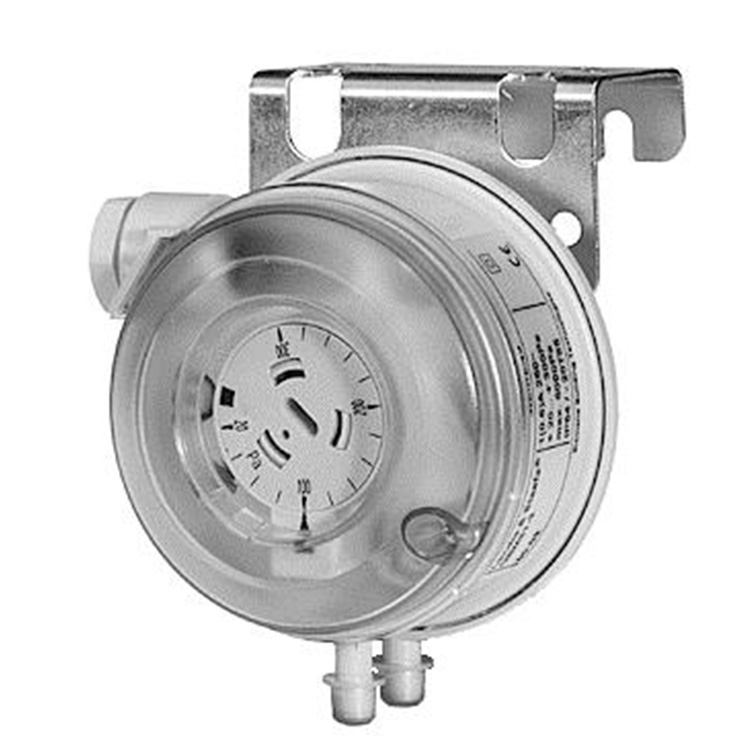

QBM81-10
Dimensions (W x H x D)：88 x 110 x 90 mm
Connection, electrical：Screw terminals
Digital outputs：1-pin , Potential-free , Switchover contact
Permissible operating pressure：7500 Pa
Ambient temperature, operation：-30…85 °C
Mounting ***ition：Diaphragm vertical, pressure connection pointing downward
Measuring range, pressure：100…1000 Pa
Digital output, switching voltage：DC 24 V / AC 24…250 V
Digital output, switching current：0.01…5 (3) A
Pressure conneciton：Connection branch, 6.2 mm dia.
Degree of protection：IP54
Dimension (Ø x L)：81 x 90 mm
QBM81-20
Dimensions (W x H x D)：88 x 110 x 90 mm
Connection, electrical：Screw terminals
Digital outputs：1-pin , Potential-free , Switchover contact
Permissible operating pressure：7500 Pa
Ambient temperature, operation：-30…85 °C
Mounting ***ition：Diaphragm vertical, pressure connection pointing downward
Measuring range, pressure：500…2000 Pa
Digital output, switching voltage：DC 24 V / AC 24…250 V
Digital output, switching current：0.01…5 (3) A
Pressure conneciton：Connection branch, 6.2 mm dia.
Degree of protection：IP54
Dimension (Ø x L)：81 x 90 mm
